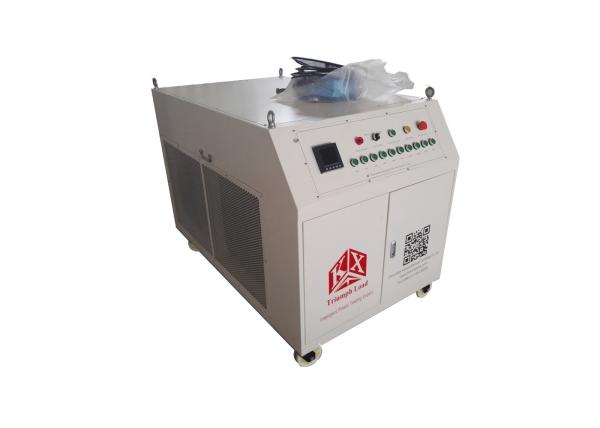

Good Performance Frequency 200kw Generator Dummy Load Bank 400 VAC

  • 1
  • 2

Brand Name : KAIXIANG

Model Number : 100KW

Certification : ISO9001

Place of Origin : HEBEI CHINA

MOQ : ONE SET

Price : negotiable

Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P

Supply Ability : 20 SETS ONE MONTH

Delivery Time : ONE MONTH AFTER GET DEPOSIT

Packaging Details : WOODEN CASE

Rating Voltage : 400VAC/50Hz, 3 phase 4 wire

Rated Load Power : Resistive load: 200kW

Rated Voltage : 400VAC

Installed Capacity : Resistive load: 200kW

Load Tolerance(overall) : ±3%

Control Power : 220VAC/50Hz,single phase

Contact Now

Good Performance Frequency 200kw Generator Dummy Load Bank

Product Description

According to the special requirements of users on site, in the agreement the technical standards of AC500-1970kVA-RL Intelligent Load Bank (hereinafter referred to as "system") and its accessories are proposed including their function, performance, usage, structure, installation and test to provide users with a high efficient and reliable choice, in order to meet the need for generator load test.

Technical Parameters

Rating Voltage/Frequency 400VAC/50Hz, 3 phase 4 wire,
Rated Load Power Resistive load: 200kW
Installed Capacity Resistive load: 200kW
Load Step 1,2,2,5,10,10,20,50.100kW, min step load: 1kW
PF(Power Factor) 1
Load Tolerance (each step) ±5%
Load Tolerance(overall) ±3%
Display Precision 0.5 class
Control Power 220VAC/50Hz, single phase
Wire Connection

Load power supply input——terminal block
Control power supply input——three pin socket
Insulation F
Duty Cycle Continuous
Casing Dimensions and Cooling about 1450*900*870mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
Weight About 200kgs/set
Transportation Hoisting, there are lifting lug in top of casing
Casing Color Grey(RAL7035)
Ambient Temperature -10℃～+50℃
Relative Humidity ≤95%
Altitude ≤1500 meter
Atmospheric Pressure 86～106kPa
Contactor Schneider
Fuse DELIXI
MCU INFINEON
Data processing software Kaixiang(self-developed)
Alloy Resistance Kaixiang(self-developed)


Product Advantage

Flexible Control Mode: based on different using habit, several control modes as following can be choose, local panel operation, remote box controlling, and intelligent software.

Application

Motor manufacturing: The load bank is an ideal test equipment for generator power ,the frequency,the voltage,the current,power factor and other generator parameters.Most of the generator use the diesel oil,which can cause the fuel oil unfilled,carbon deposition ,complete machine efficiency reduced when the diesel oil load is lower than 50% or in idling situation for a long time and even cause starting difficulty ,power insuffciency,oil consumption increased,finally,opening the cylinder for maintenance too early and the abandonment ,so the load bank will be generator's ideal false load.
